1. Usage and Application Range

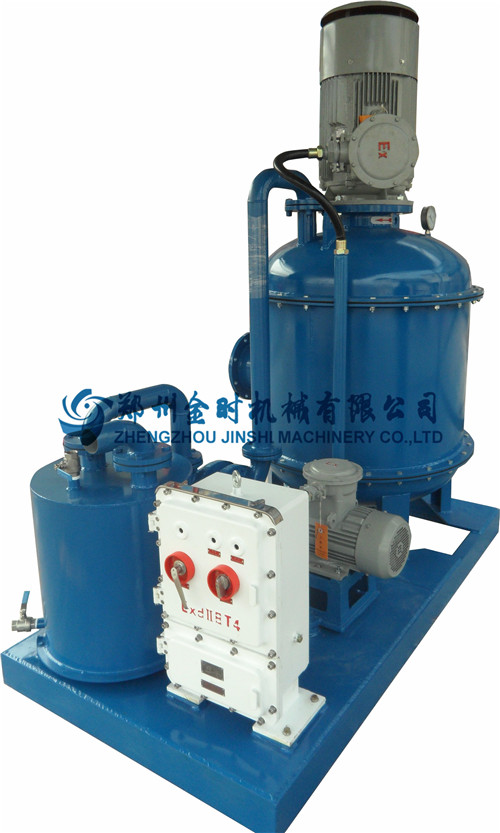

JZCQ series Vacuum Degasser is solids control equipment for treatment of gas cut drilling liquid. It can get rid of incursive gas quickly in drilling liquid to recover specific gravity of drilling liquid and stabilize its performance. It is indispensable equipment in exploratory well and drilling in ultradeep well and under-balanced drilling.
2. Product features
i. Capacity is large,gas removal efficiency is high and deal with gas mud serious and change it normal quickly.
ii. The vacuum pump is cooled with water loop and suitable for safer evacuation of combustible gas.
iii. The working condition can be saw from the viewing window,and the working condition can be adjusted by pressure regulating valve,can make sure the degaser works under optimum condition
3. Main technical parameters
Model | JZCQ-1/4(240) | JZCQ360-180 | JZCQ-300 |
Discharge capacity | 200～260 m3/h | 300～360 m3/h | 280～320 m3/h |
Vacuum degree | 280～400 mmHg | 400～550 mmHg | 380～500 mmHg |
Efficiency | ≥95% | ≥95% | ≥95% |
Main motor power | 15 kW | 22 kW | |
Vacuum pump motor power | 2.2 kW/3 kW（60Hz） | 4 kW/5.5 kW（60Hz） | 3 kW/4 kW（60Hz） |
Inlet diameter | 5″ | 6″ | 8″ |
Outlet diameter | 6″ | 8″ | 8″ |
Weight | 1850 kg | 2500 kg | 2800 kg |
Overall dimensions | 1990×1200×2300mm | 2200×1220×2400 mm | 2500×1400×2100mm |
